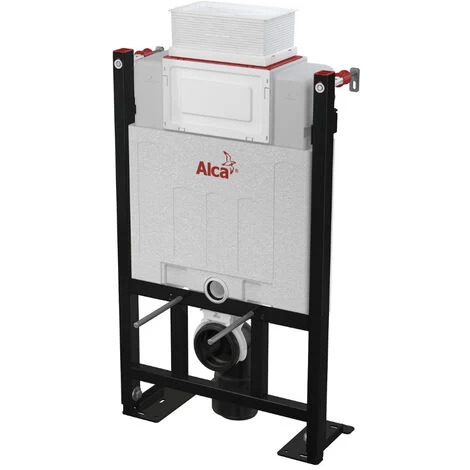

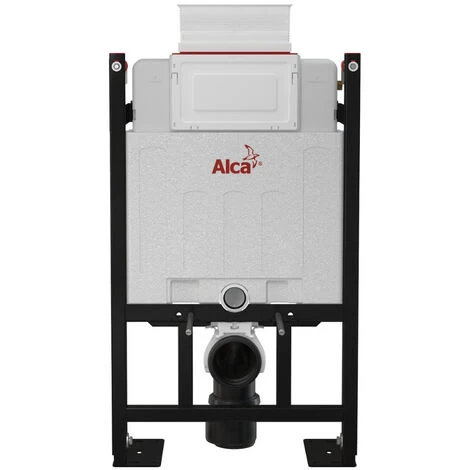

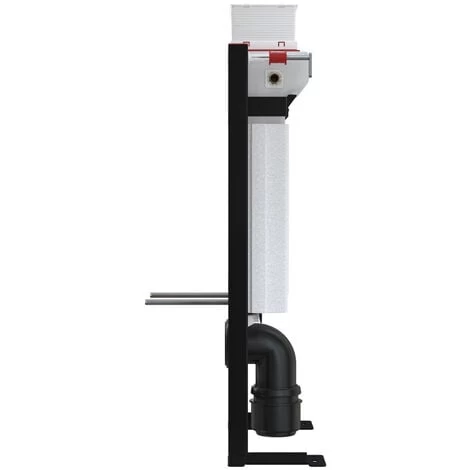

Alca Self-supporting Frame For Suspended Toilet, 85cm (AM118/850F)

Features of the Freestanding 85cm Wall-Hung Toilet Frame (AM118/850F):

• Freestanding toilet frame
• For wall-hung toilets
• Suitable for installation in front of a load-bearing wall or in a plasterboard construction
• For floor thicknesses of 0 to 200 mm
• For installation of wall-hung toilet bowls with a connection pitch of 180 mm or 230 mm
• Adjustable anchoring feet and spring locking system, with a range of 0 to 200 mm
• The sliding rail support for the waste connector can be adjusted to eight positions between 0 and 93 mm
• Angle valve with the option to connect to the Mepla piping system
• The frame allows for anchoring to a separate plasterboard partition that is sufficiently strong, in front of the load-bearing wall
• For drywall, completely pre-assembled
• The installed module is covered with a plasterboard panel and no additional fixing or anchoring elements are required
• The polystyrene insulation construction prevents condensation from forming on the surface of the tank and dampens tank vibrations in the building structure
• Prepared for connecting a support with a DG 1/2″ conversion for bidet seats and sprays
• Double flush independently adjustable with hygiene reserve
• Top or front actuation
• Maintenance work can be performed without tools
• Water supply from the back/top
• The tank is made of a single piece, ensuring 100% waterproofing
• The service opening cover simplifies assembly and prevents the penetration of moisture and impurities
• Adjustable installation depth from 20 to 95 mm
• Frame material: powder-coated metal
• Metal feet
• Schell shut-off valve included
