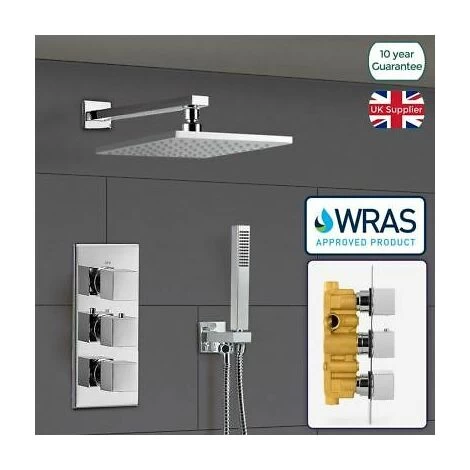

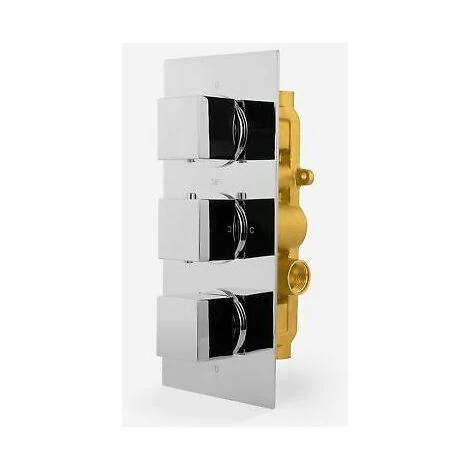

Cameo Bathroom Concealed Square Thermostatic Shower Mixer Valve Tap Chrome

Features

• Chrome plated solid brass construction
• Built in anti scald device set to 38°
• Easy clean anti-limescale rubber jets
• Minimum wall depth of 87mm required
• Minimum 0.2 bar water pressure

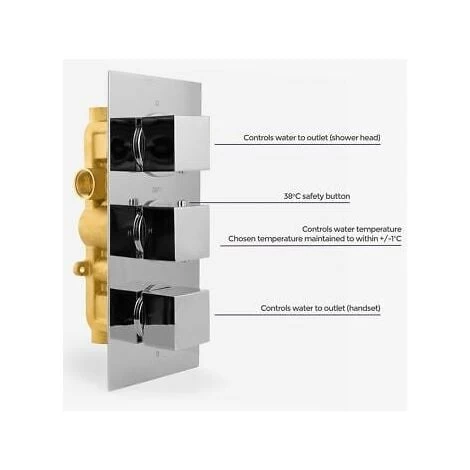

3 Dial 2 Way Thermostatic Mixer Valve Feature

• Top Dial – Controls water to 1 outlet diverters
• Middle Dial – Temperature Control
• Bottom Dial – Controls water to 1 outlet diverter
• High Quality Design
• Chrome Finish
• Thermostatically controlled

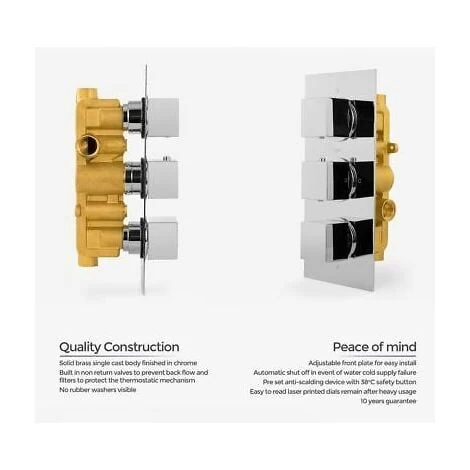

• Manufactured from highly durable brass
• Operating range 20 – 50 deg C with 38 deg C safety button
• Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
• Chosen temperature maintained to within +/-1ºC
• Pre-set maximum temperature
• Automatic shut off in event of water cold supply failure
• UK standard size fitting

Working Requirements

Our thermostatic showers work on water systems that produce a minimum of 0.5 bar water pressure. This can
be achieved by using one of the following systems:

• Combination boiler systems
• Gravity fed systems (only with a pump)
• Megaflow system
• Pumped hot water systems
• Un-vented hot water systems
• Standard pressurized hot water cylinder type systems

Package Includes:

• Mixer Valve
• Shower Head
• Shower Arm
• Shower Hose
• Wall Connector and Brackets
