- Length10.0 cm
- Width50.0 cm
- Height112.0 cm
- Depth10.0 cm
- Weight13.7 kg
- MaterialRubber
- ShapePoint
- Pcs per pack1.0 products
- ColourBlue
- ManoMano ReferenceME2057097
- Warranty2 years
- Product code111510001

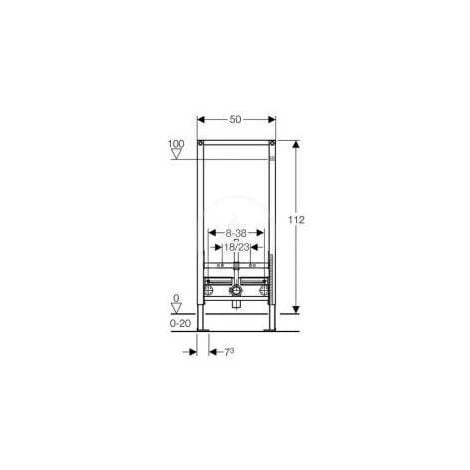

Features of the Geberit Duofix Mounting element for wall-hung bidet, H: 112 cm (111.510.00.1) :
- For dry construction
- For pre-wall installations that are partially high or high to the room height
- For suspended bidets with self-supporting fittings
- For floor thicknesses from 0 to 20 cm
- For one-hole fittings
- For dry installation
Features :
- Self-supporting frame with applied powder coating
- Frame with ø 9 mm drilled holes for fixing to a wooden structure
- Galvanised supports
- Supports adjustable from 0 to 20 cm
- Supports with anti-slip treatment
- Pivoting heel plates
- Depth of foot plate suitable for installation in U profiles UW 50 and UW 75 and in Geberit Duofix system profiles
- Installation distance of the bidet 18 or 23 cm
- Height-adjustable bidet support
- Mounting for height-adjustable, sound-insulated connection bend
- Height and width-adjustable mounting bracket
- Protective cap for single pressure test with cold water up to max. 15 bar / 1500 kPa
- Height: 112 cm
Brackets part no. 111.815.00.1 not included, to be ordered separately.
Intended use
- For one-hole fittings
- For dry installation
Features
- Height: 112 cm
