Geberit Duofix Pack Extra-flat Frame 114 Cm UP720, Space Saving + Sigma20 Flush Plate, Chrome (111.796.00.1-F)

Characteristics of the Duofix Pack Extra-flat frame 114 cm UP720, space saving + Sigma20 flush plate, Chrome (111.796.00.1-F):

• Geberit Duofix UP720 extra-flat base 114 cm, space-saving, with Sigma 8 cm concealed cistern (111.796.00.1)
• Geberit DUOFIX Sigma 20 chrome (115.882.KH.1)

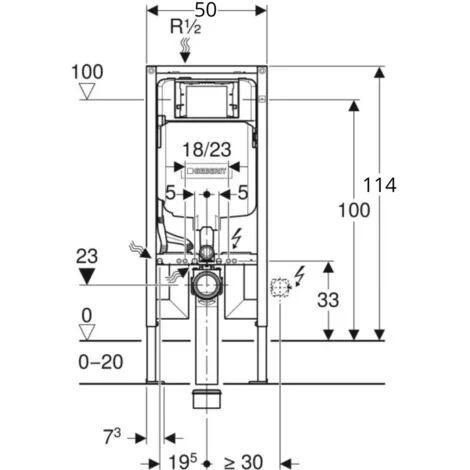

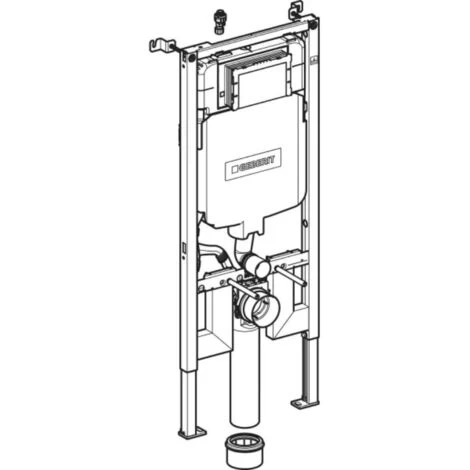

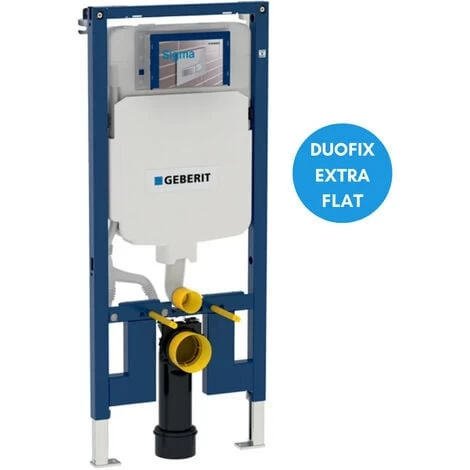

Geberit Duofix Extra-flat support frame 114 cm UP720, space-saving, with concealed cistern Sigma 8 cm (111.796.00.1) :

• Frame suitable for WC bowls with small support surface (with pressure-resistant wall covering)
• Galvanized, infinitely adjustable, non-slip support feet
• Depth of foot plates suitable for installation on UW 50 profiles and rails for Geberit Duofix system
• Connecting bend for different depth positions, to be mounted without tools
• Connecting bend for depth position flush with the front for vertical installation
• Extended connection bend for floor connection
• Connection bend fastening with sound insulation
• Built-in tank with front release
• Built-in tank insulated against condensation
• Immediate post-flushing possible with factory setting
• Installation and maintenance work on the built-in tanks without tools
• Water inlet from the top left
• Housing for access panel, protects against moisture and dust
• Access panel box, can be cut to size, suitable for flush-mounted trigger plates
• Equipped with a supply line sleeve for connection of Geberit AquaClean washbasins
• With fixing possibilities for electrical connection

Application:

• For drywall construction
• For installation in walls at room height or partial height
• For installation in installation walls at room height
• For wall-hung toilets extended to 70 cm
• For one-touch, two-touch or interruptible flushing
• For screed heights of 0-20 cm

Scope of delivery :

• R 1/2″ supply line, MF compatible, with integrated angle valve and hand wheel
• Reservation box for inspection hatch
• 2 wall mountings
• WC connection set, ø 90 mm
• 90° PE-HD connection bend, ø 90 mm
• Transition sleeve made of PE-HD, ø 90 / 110 mm
• 2 protective caps
• 2 threaded rods M12
• Fixing material

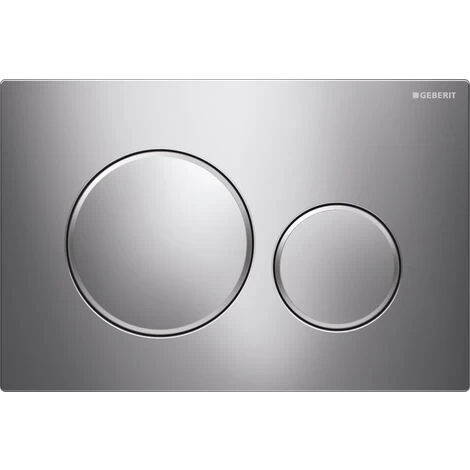

Geberit DUOFIX Sigma 20 chrome (115.882.KH.1) :

• The SIGMA20 release plate is suitable for the SIGMA 12 cm (up320) and SIGMA 8 cm (up720) concealed cisterns
• Frontal release
• Tool-free mounting of the support frame
• Double button
• Made of synthetic material
• Resistant to cleaning agents and scratches
• Supplied with support frame, threaded release rods and fixing material
