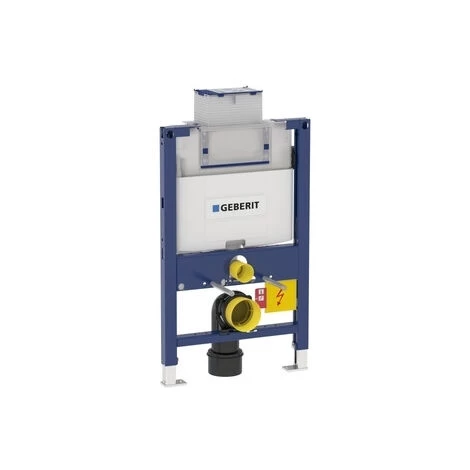

Geberit Duofix Support Frame For Wall-hung WC, 82 Cm, With Omega Concealed Cistern 12 Cm (111.003.00.1)

Use:

• For drywall construction
• For installation in partial-height overlay walls
• For wall-hung toilets with connection dimensions according to EN 33:2011
• For wall-hung toilets with a projection of up to 62 cm
• For two-touch flushing
• For screed height 0-20 cm

Features:

• Self-supporting, powder-coated frame
• Frame with ø 9 mm drill holes for fixing in wooden construction
• Frame prepared for ceramic WC supports with small support surface
• Galvanised support feet
• Adjustable support feet 0-20 cm
• Anti-slip support feet
• Pivoting base plates
• Base plate depth suitable for installation in U-profiles UW 50 and UW 75 and rails for Geberit Duofix system
• Connecting bend for different depth positions, can be fitted without tools, adjustment range 45 mm
• Sound-insulated connection bend fastening – Concealed cistern with front or top operation
• Built-in tank insulated against condensation
• Immediate post-flushing possible with factory setting
• Installation and maintenance work on built-in tanks without tools
• Supply from the side or rear, left
• Access panel housing can be cut off
• Equipped with a supply line sleeve for connection to Geberit AquaClean flushing toilets
• With fixing possibilities for electrical connection

Contents of the box:

• Water inlet R 1/2″, MeplaFix compatible, with integrated angle valve and hand wheel
• Reservation box for inspection cover
• WC connection set, ø 90 mm
• 90° PE-HD connection bend, ø 90 mm
• Transition sleeve made of PE-HD, ø 90 / 110 mm
• 2 protective caps
• 2 threaded rods M12

This set does not include :

Wall bracket for load-bearing wall 111.815.00.1

Flush plates are not included
