Geberit Toilet Set Cistern Frame Duofix + Geberit ICon Rimless WC + Softclose Seat + White Plate (iConGeb3)

Opt for the quality and ease of installation of the Duofix support frame + iCon rimless toilet + softclose seat + white plate (iConGeb3).

The quality of the items in this pack is recognised and the modernity and design of these items will certainly satisfy you by providing you with solutions adapted to your projects.

Features of the Toilet set Cistern frame Duofix + Geberit iCon rimless WC + Softclose seat + White plate (iConGeb3) :

• Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1)
• Geberit Duofix wall mounting set for self-assembly (111.839.00.1)
• Geberit Dual flush plate DELTA20 (115.107.11.1)
• Geberit iCon Wall-hung rimless WC , White (204.060.000)
• Geberit iCon Softclose seat in Duroplast for wall-hung toilets, white (500.670.01.1)

.

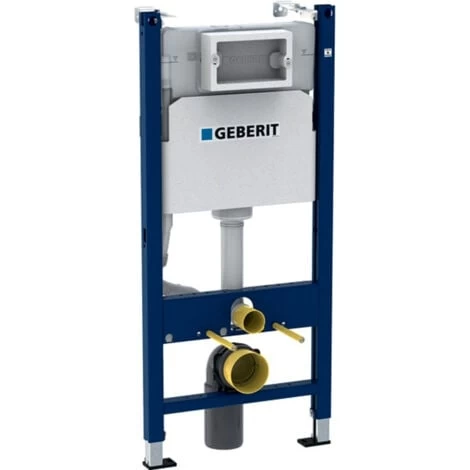

Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1) :

Use:

• For pre-wall installation, installation in whole or in part
• For a solid wall or a dry wall
• For installing a wall-hung toilet with a fixing distance of 18 cm or 23 cm
• For floor thickness 0 – 20 cm
• For front control
• Geberit AquaClean
• Not suitable for concreting

Features:

• Delta Geberit flush cistern 12 cm (UP100) front control, against condensation
• Adjustable large flow rate
• Small fixed flush rate
• Adjustable instantaneous flush
• Water supply from the rear/upper centre
• Connection pipe to the corner valve can be screwed on manually
• 2 flushes with Geberit Delta20 control knobs
• Frame with ø 9 mm holes for fixing in wooden structures
• Galvanised supports, infinitely adjustable from 0 to 20 cm
• Plastic base plates, depth suitable for installation UW50
• Installation depth 12 cm

Technical information:

• Rinse quantity – factory setting 6 and 3.5 l
• Large flush volume – setting range 4.5 / 6 / 7.5

  Included in the frame:


• 2 M12 threaded rods for ceramic fixing
• Drain valve for 2 flush volumes
• Cover for installation, polystyrene foam
• 2 protective caps
• Corner valve R 1/2″ with adapter ring
• Geberit AquaClean water supply hose
• Connection set ø 90 mm
• Waste bend for WC, PE-HD, ø 90/90 mm
• Adapter, ø 90/110 mm
• Fixing materials
• Geberit Duofix wall bracket set for self-assembly (111.839.00.1)

.

Geberit iCon Wall-hung rimless WC , White (204.060.000) :

• Material: Sanitary Ceramic
• Hanging WC
• Dimensions: 35.5 x 33 x 53cm
• Rimless toilet bowl with invisible fixings
• Easy mounting with Geberit wall mounting type EFF2 for WC
• Type 1, total volume 6/5/4 l, according to EN 997
• With permanently fired, almost non-porous glaze KeraTect®, surface roughness value according to DIN 4768-ISO 4287 Ra <0.01µm: special glaze for permanent smoothness, shine and easy maintenance
• Easy-care, closed exterior surfaces thanks to innovative concealed wall mounting (accessible from above)
• Fixing hardware included

• Required accessories:

• An extended runoff support 152441461 is required for installation
• WC seat 574130000 with automatic lowering or WC seat 574120000 without automatic lowering

.

Geberit iCon Softclose seat in Duroplast for wall-hung toilets, white (500.670.01.1) :

• Material : Duroplast
• Colour: white / glossy
• Quick-release hinges : Yes
• Soft-closing mechanism : Yes
• Fastening from above
• Hinge material : Stainless steel
• Suitable for iCon Toilets: 501.661.00.1 / 204060000 / 204000000​​​​​​​ / 204070000​​​​​​​ / 214020000​​​​​​​ / 200460000​​​​​​​
• (Replaces: 500.431.01.1)

.

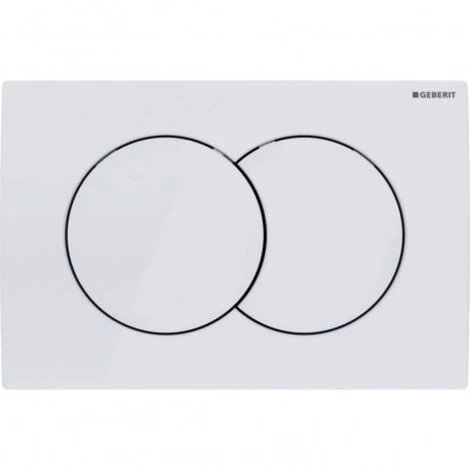

Geberit Dual flush plate DELTA20 (115.107.11.1) :

• Delta has 2 buttons, one for a small 3L flush and one for a large 6L flush

  • Water saving
  • Frontal activation

.

Please note! It is imperative to check the products upon receipt. Any damage must be reported to the delivery person and indicated precisely for each product on the delivery note. No claim can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
