Geberit Toilet Set Duofix Cistern Frame 112cm + WC Rimless SAT Brevis + Ultra-thin Seat, Softclose + White Flush Plate (BrevisGeb3)

Features of the Toilet set Duofix cistern frame 112cm + WC rimless SAT Brevis + Ultra-thin seat, softclose + White flush plate (BrevisGeb3) :

• Swiss Aqua Technologies Brevis Wall-hung toilet without rim, invisible fixings + ultra-thin seat, softclose (BrevisRimless)
• Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1)
• Geberit Duofix wall mounting set for self-assembly (111.839.00.1)
• Geberit DELTA20 flush plate white (115.107.11.1)

.

Geberit DUOFIXBasic for wall-hung toilets, with Delta cistern (111.153.00.1) :

Use:

• For pre-wall installation, installation in whole or in part
• For a solid wall or a dry wall
• For installing a wall-hung toilet with a fixing distance of 18 cm or 23 cm
• For floor thickness 0 – 20 cm
• For front control
• Geberit AquaClean
• Not suitable for concreting

Features:

• Delta Geberit flush cistern 12 cm (UP100) front control, against condensation
• Adjustable large flow rate
• Small fixed flush rate
• Adjustable instantaneous flush
• Water supply from the rear/upper centre
• Connection pipe to the corner valve can be screwed on manually
• 2 flushes with Geberit Delta20 control knobs
• Frame with ø 9 mm holes for fixing in wooden structures
• Galvanised supports, infinitely adjustable from 0 to 20 cm
• Plastic base plates, depth suitable for installation UW50
• Installation depth 12 cm

Technical information:

• Rinse quantity – factory setting 6 and 3.5 l
• Large flush volume – setting range 4.5 / 6 / 7.5

  Included in the frame:


• 2 M12 threaded rods for ceramic fixing
• Drain valve for 2 flush volumes
• Cover for installation, polystyrene foam
• 2 protective caps
• Corner valve R 1/2″ with adapter ring
• Geberit AquaClean water supply hose
• Connection set ø 90 mm
• Waste bend for WC, PE-HD, ø 90/90 mm
• Adapter, ø 90/110 mm
• Fixing materials
• Geberit Duofix wall bracket set for self-assembly (111.839.00.1)

.

Swiss Aqua Technologies Brevis Wall-hung toilet without rim, invisible fixings + ultra-thin seat, softclose (BrevisRimless) :

• Brand: Swiss Aqua Technologies

• Material: Ceramic
• Simple and clean style bowl
• Rimless bowl
• Hidden fixings
• Depth 53 cm
• Economical Rinsing 3 / 4.5 L
• Seat with soft close
• Removable seat
• Easy to maintenance thanks to the rimless system and the removable seat
• Quick installation

.

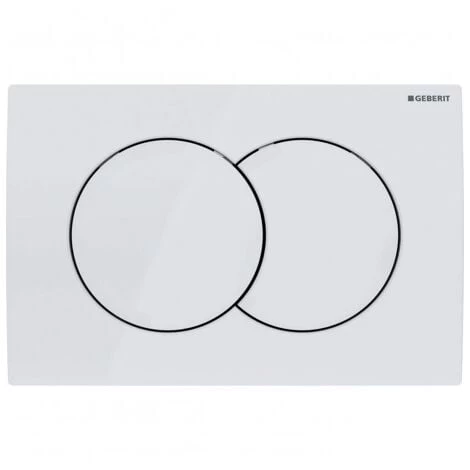

Geberit Dual flush plate DELTA20 (115.107.11.1) :

• Delta has 2 buttons, one for a small 3L flush and one for a large 6L flush

• Water saving
• Frontal activation

.

Please note! It is imperative to check the products upon receipt. Any damage must be reported to the delivery person and indicated precisely for each product on the delivery note. No claim can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
