Geberit Toilet Set Duofix Frame + SAT Infinitio Rimless WC , Invisible Fixings + White Flush Plate (InfinitioGeb3)

Opt for the quality and ease of installation of the toilet set Geberit Duofix cistern frame + SAT Infinitio rimless toilet with soft close seat and invisible fixings+ White Flush Plate (InfinitioGeb3).

This toilet pack links the Geberit brand and the Infinitio range from Swiss Aqua Technologies, products of renowned quality. This support frame and the advanced technology of this toilet bowl offer solutions adapted to all your projects and will surely satisfy all your expectations.

Features of the Toilet set Duofix frame + SAT Infinitio rimless WC , invisible fixings + White flush plate (InfinitioGeb3) :

• Swiss Aqua Technologies Infinitio wall-hung rimless toilet with invisible fixings + soft close seat (Infinitiorimless)
• Geberit DUOFIXBasic for wall-hung toilets, with Delta tank, for Delta control buttons (111.153.00.1)
• Geberit DuofixBasic pre-wall mounting set (111.839.00.1)
• Geberit DELTA20 white flush plate (115.100.11.1)

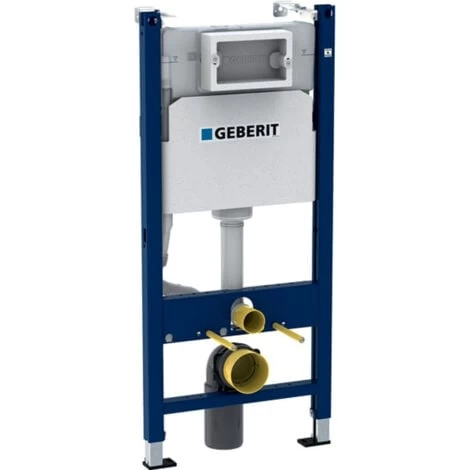

Geberit DUOFIXBasic cistern frame, with Delta tank, for Delta control buttons (111.153.00.1) :

Use :

• For drywall construction
• For installation in part- or room-height prewall installations
• For installation in room-height installation walls
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For wall-hung WCs with projection up to 62 cm
• For floor constructions 0–20 cm
• Geberit AquaClean
• Not suitable for concreting

Characteristics :

• Delta Geberit concealed cistern 12 cm (UP100) front control
• Concealed cistern, fully insulated against condensation
• Adjustable large flow rate
• Small fixed flush rate
• Adjustable instantaneous flush
• Water supply connection on the rear or top centre
• Connection bend can be mounted without tools
• 2 flushes with Geberit Delta20 control buttons
• Frame with ø 9 mm drilling holes for fastening in wood frame construction
• Galvanized feet, adjustable 0–20 cm
• Foot plates made of plastic, suitable for installation in U-profiles UW 50
• Installation depth 12 cm

Technical data :

• Flush volume, factory setting 6 et 3,5 l
• Flush volume large, adjustment range 4,5 / 6 / 7,5 l

Included in the frame :

• 2 M12 threaded rods for ceramic fixing
• Drain valve for 2 flush volumes
• Protection box for service opening, made of polystyrene foam
• 2 protection plugs
• Angle stop valve R 1/2″, with adaptor ring
• Geberit AquaClean water supply hose
• Connection set for WC, ø 90 mm
• Connection bend 90° made of PE-HD, ø 90 mm
• Adaptor socket made of PE-HD, ø 90 / 110 mm
• Fastening material
• Geberit Duofix set of wall anchors for single installation (111.839.00.1)

Swiss Aqua Technologies Infinitio rimless wall-hung toilet + softclose seat :

• Brand : Swiss Aqua Technologies
• Material: Ceramic
• Compact toilet adapted to small spaces
• Bowl with a simple and pure style
• Rimless bowl
• Hidden fixings
• 48 cm depth
• 3 / 6 L flush
• Seat with soft close system
• Removable seat
• Easy to clean thanks to the rimless system and the removable seat
• Quick installation

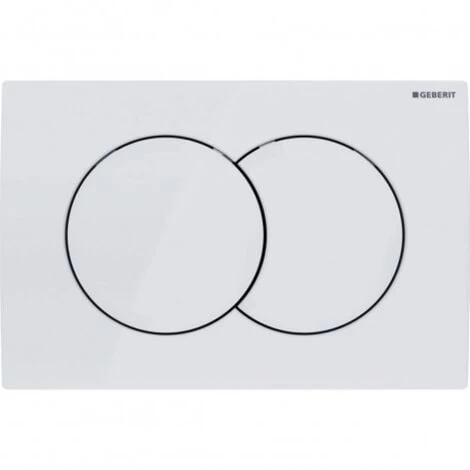

Geberit DELTA20 white flush plate (115.100.11.1) :

• Delta has 2 buttons, one for a small 3L flush and one for a large 6L flush
• Water saving
• Frontal release

Geberit DuofixBasic pre-wall mounting set (111.839.00.1)
