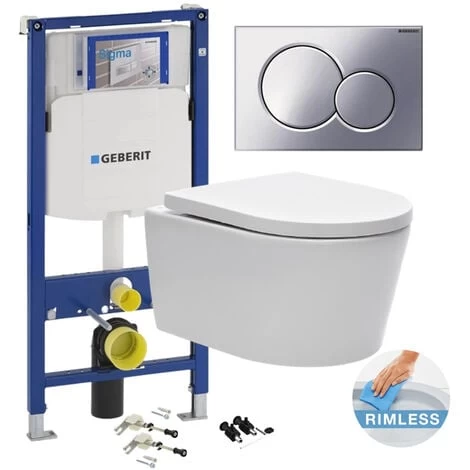

Geberit Toilet Set Support Frame With SAT Rimless Bowl, Invisible Fixings + Softclose Seat + Flush Plate (GebSatrimless-CR+)

Features of the Toilet set support frame with SAT rimless bowl, invisible fixings + softclose seat + Flush plate (GebSatrimless-CR+) :

• Geberit Flush plate Sigma01 for dual flush, Gloss chrome-plated (115.770.21.5)

• Swiss Aqua Technologies Rimless wall-hung toilet and invisible fixings + softclose seat (SATrimless)

• Geberit Duofix support frame (111.300.00.5)

• Geberit DUOFIX wall mounting set (111.815.00.1)

.

Geberit Flush plate Sigma01 for dual flush, Gloss chrome-plated (115.770.21.5) :

• Actuation force: < 20 N
• Characteristics: Front actuation, sound-absorbing actuator rods, tool-free fast adjustment
• Delivered with: Mounting frame, 2 distance bolts, 2 actuator rods

.

Swiss Aqua Technologies Rimless wall-hung toilet and invisible fixings + softclose seat (SATrimless) :

• Brand: Swiss Aqua Technologies
• Material: ceramic
• Compact toilet suitable for small spaces
• Simple and clean style toilet bowl
• Rimless toilet bowl
• Hidden fixings
• 48 cm deep
• Economic rinse 3 / 4.5 L
• Toilet seat with fall brake
• Snap-on flap
• Easy to maintain thanks to the rimless system and removable flap
• Quick setup

.

Geberit Duofix support frame (111.300.00.5) :

• For mounting with floor structure from 0 to 20 cm
• For mounting in wall or partition
• For installation in a wall at room height
• For wall-hung toilet bowls with 18 cm or 23 cm fixing distance
• Can be connected to Geberit AquaClean
• Geberit Sigma concealed cistern 12 cm, front operation
• 2-volume flush, suitable for Geberit Sigma01, Sigma20, Sigma50, Sigma60, Sigma70, Sigma80 or Bolero trigger plates
• Interruptible rinse, suitable for Geberit Sigma10, Mambo or Tango trigger plates
• Adjustable flush water quantity
• Concealed cistern for tool-free installation and maintenance
• Acoustically insulated trigger rods, quickly adjustable without tools
• Universal water connection, compatible with MeplaFix, for toolless installation
• Flexible connection hose to the shut-off valve, can be screwed on without tools
• Tool-free, sound-insulated drain elbow fitting, depth-adjustable in 8 positions, adjustment range 45 mm
• Self-adjusting feet adjustable from 0 to 20 cm
• Frame with 9 mm dia. drill holes for fixing in wooden cross-frame construction
• Concealed cistern with anti-condensation insulation
• Frame with C-profile 4/4 cm
• Frame painted ultramarine blue
• 5 cm push-on feet
• Water connection from above in the middle, from the back or from above

Use :

• For dry wall construction
• For installation in walls at room height or partial height
• For installation in installation walls at room height
• For wall-hung toilets extended to 70 cm
• For one-touch, two-touch or interruptible flushing
• For screed heights of 0-20 cm

Scope of delivery :

• R 1/2″ supply line, MF compatible, with integrated angle valve and hand wheel
• Reservation box for inspection hatch
• 2 wall mountings
• WC connection set, ø 90 mm
• 90° PE-HD connection bend, ø 90 mm
• Transition sleeve made of PE-HD, ø 90 / 110 mm
• 2 protective caps
• 2 threaded rods M12
• Fixing material

.

Geberit DUOFIX wall mounting set (111.815.00.1) :

• For fixing Geberit Duofix support frames in front of drywall or solid construction walls
• For fastening the cladding in front of partial-height overlay walls

.

Please note! It is imperative to check the products upon receipt. Any damage must be noted in front of the delivery person and indicated precisely for each product on the delivery note. No claim can be accepted afterwards, as the carriers are very strict in this respect. We thank you for your understanding.
