Geberit Toilet Set UP100 Support Frame + Delta35 Matt Chrome Plate + SAT Rimless Suspended Bowl And Invisible Fixings (SATrimlessGeb2)

Features of the UP100 support frame toilet set + Delta35 chrome plate + SAT suspended bowl without rim:

• Geberit UP100 support frame (458.103.00.1)
• Two-button actuator plate DELTA35 Matt chrome (Ref. 115.135.46.5)
• Swiss Aqua Technologies Wall-hung toilet without rim and invisible fixings + soft close seat (SATrimless)

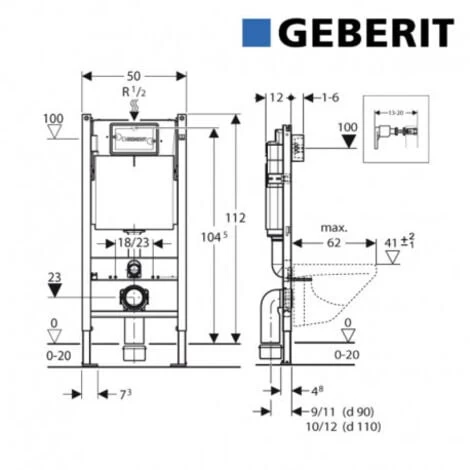

Geberit Duofix UP100 support frame + toilet cistern 112 cm (458.103.00.1) :

• Zinc-plated support frame 112 cm with adjustable feet from 0-20 cm
• UP100 water tank (with 25-year manufacturer’s spare parts warranty)
• Prepainted frame in Geberit blue color
• Support feet with graduation mark in cm
• Adjustable feet for mounting in UW50 / UW75 profile
• Cross member for trim support
• 2 M12 threaded rods for fixing the ceramic with an intermediate distance of 18 or 23 cm
• Concealed cistern 4-6-7.5 l, insulated against condensation
• Two-quantity frontal trigger
• Feeding at the rear / top
• R1 / 2 “angle shut-off valve
• Reservation box for inspection hatch
• Styrofoam site protection
• Ø 90 mm discharge elbow
• Sleeve insert Ø 90 mm
• Fixing material

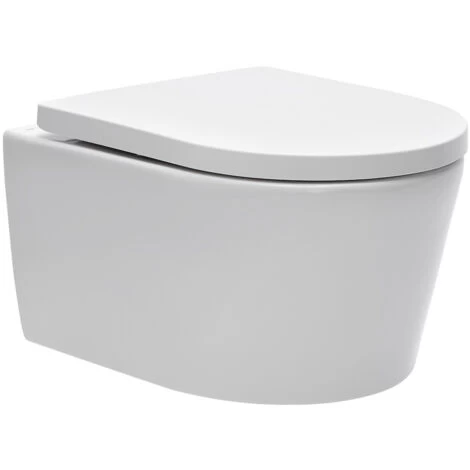

Swiss Aqua Technologies wall-hung toilet rimless + softclose seat (SATrimless) :

• Brand: Swiss Aqua Technologies
• Material: ceramic
• Compact toilet suitable for small spaces
• Simple and clean style toilet bowl
• Rimless toilet bowl
• Hidden fixings
• 48 cm deep
• Economic rinse 3 / 4.5 L
• Toilet seat with fall brake
• Snap-on flap
• Easy to maintain thanks to the rimless system and removable flap
• Quick setup

Two-button actuator plate DELTA35 Matt chrome (Ref. 115.135.46.5):

• Trigger plate with ABS double button device
