- Length19.7 cm
- Height113.0 cm
- ManoMano ReferenceME73359634
- Product code38772001*
ence Features of the GROHE 38772001 Rapid Sl 3-in-1 Set for Wall-Hung Toilet with Wall Brackets and Skate Cosmopolitan Chrome Flush Plate :

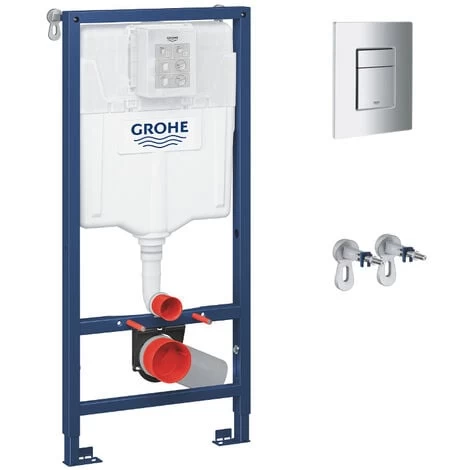

This set includes:

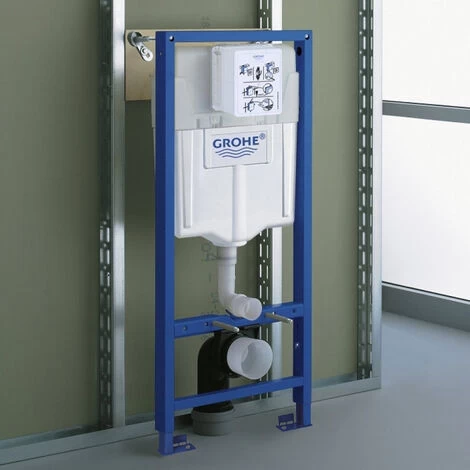

Grohe Rapid SL toilet support frame (38528001)
GD 2 cistern, with inspection hatch
Height: 1,13 m
Steel frame with epoxy finish
Mounting on load-bearing walls or in light weight double framed walls
Quick adjustment and locking of the height up to 200 mm
Supplied with fixing material
TÜV approved
Supplied with bolts and nuts for fixing the toilet bowl, ceramic fixing
Distance between fixings 180/230 mm
PP drain elbow Ø 90 mm
Depth and height adjustable (200 mm)
Reducing connection DN 90/110
Drainage and supply fitting
Tank 6 – 9 l
Factory setting 3 and 6 l
Pneumatic release mechanism (AV1) for one-touch (interruptible) and two-touch (interruptible) control panel
Side or rear supply
Condensation-proof tank
Water supply with angle valve and flexible connection
Installation of the template, horizontal or vertical, without tools

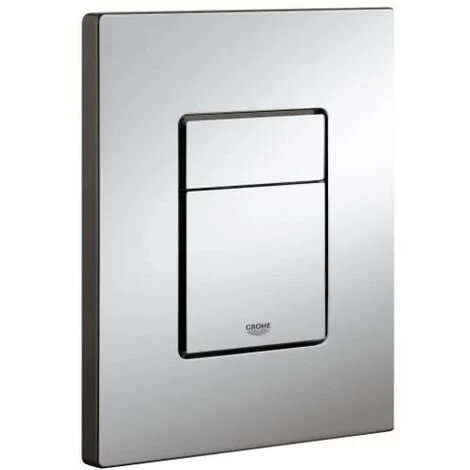

Skate Cosmopolitan toilet flush plate (38732000)
– Two-touch or interruptable
– For pneumatic mechanism
– 156 x 197 mm
Grohe Rapid SL wall bracket fixing kit (3855800M)
The reference 38811000 replaces the reference 38772001.
