Grohe Toilet Set Rapid SL GROHE + Toilet Bowl Ideal Standard Tesi Aquablade + Flush Plate Grohe Skate Chrome (GROHEAQUA-SET-UK)

View all

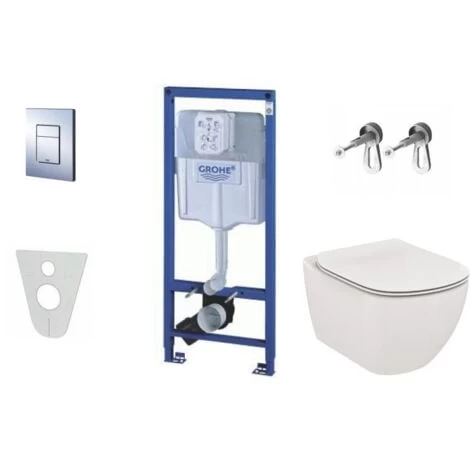

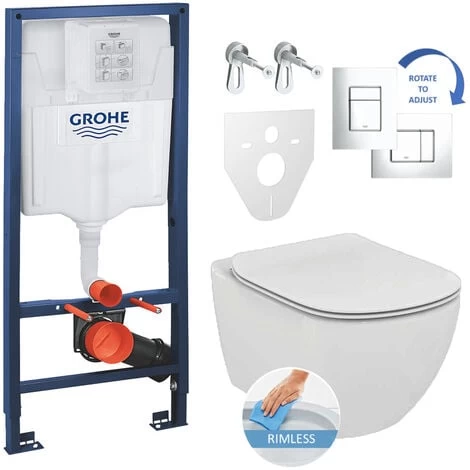

Features of the Toilet set Rapid SL GROHE + Toilet bowl Ideal Standard Tesi Aquablade + flush plate Grohe Skate Chrome (GROHEAQUA-SET-UK):

• Support frame Grohe Rapid SL (38528001)
• Wall mount kit (3855800M)
• Toilet bowl Ideal Standard Tesi AquaBlade and seat ultra-thin, softclose (T354601)
• Styrofoam plate for sound insulation (SP 156SET)
• Flush plate Grohe Skate Cosmopolitan (38732000)

Grohe Rapid SL Frame set (38811000):

This set includes:

Grohe Rapid SL toilet support frame

• GD 2 cistern, with inspection hatch
• Height: 1,13 m
• Steel frame with epoxy finish
• Mounting on load-bearing walls or in light weight double framed walls
• Quick adjustment and locking of the height up to 200 mm
• Supplied with fixing material
• TÜV approved
• Supplied with bolts and nuts for fixing the toilet bowl, ceramic fixing
• Distance between fixings 180/230 mm
• PP drain elbow Ø 90 mm
• Depth and height adjustable (200 mm)
• Reducing connection DN 90/110
• Drainage and supply fitting
• Tank 6 – 9 l
• Factory setting 3 and 6 l
• Pneumatic release mechanism (AV1) for one-touch (interruptible) and two-touch (interruptible) control panel
• Side or rear supply
• Condensation-proof tank
• Water supply with angle valve and flexible connection
• Installation of the template, horizontal or vertical, without tools

Skate Cosmopolitan toilet flush plate (38732000)

• Two-touch or interruptable
• For pneumatic mechanism
• 156 x 197 mm

Grohe Rapid SL wall bracket fixing kit (3855800M)

Ideal Standard TESI set contents – AquaBlade rimless toilet bowl + ultra-thin softclose seat (T354601):

• Rimless porcelain sanitary ware toilet bowl (T007901)
• Dedicated seat with soft close system (T352701)

Features:

• Dimensions (WxDxH): 365 x 535 x 355 mm
• Porcelain fired at 1270°, lightfast and resistant to basic acids
• Porosity less than 0.1%, the breaking point is between 500 and 600Kg/cm2
• Enamel (thickness of 0.7mm) applied directly to the porcelain and fired at the same temperature, without engobe
• Enamel standard NF D14-503 (02/2012) concerning resistance to temperature variations at 60°c and to thermal shock cycles at 120°c, resistant to chemicals described in standard NF D14-508
• Suspended bowl with an elegant design without any protrusions
• Rear wall width: 285 cm
• Rimless, fully enamelled bowl for easy cleaning
• Water flows through two open side channels and a central hole
• Bowl designed for efficient rinsing at 4/2 & 6/3 litres (class 2)
• Fixing distance: 180mm
• The installed bowl has a load tolerance of 400 kg without risk of deformation or loosening
• In case of fixing at 320 mm from the finished floor, the height of the seat without flap will be 400 mm and the distance between the bottom of the bowl and the finished floor will be 60 mm
• The toilet is equipped with a special drop-brake seat
• The name of the manufacturer appears in full on the product
• Complies with the standard: EN 997 & EN 33

Sound insulation set for wall-hung WC and bidet (SP 156SET):

Use:

• For suspended toilets and bidets, protection of the wall tiles between the support frame and the toilet
• For decoupling body sound on WCs and bidets
• Compatible with all frames
• For installation at a distance of 18 cm or 23 cm

Product details:

• Material: Polyethylene foam

Supplied with:

• 2 sound insulation sleeves
