Jackon Tileable Shower Tray Aqua Centered 900x900x40mm With Free Vertical Drain (4512087 + 4512008)

Features of Tileable shower tray Aqua Centered 900x900x40mm with free vertical drain (4512087 + 4512008) :

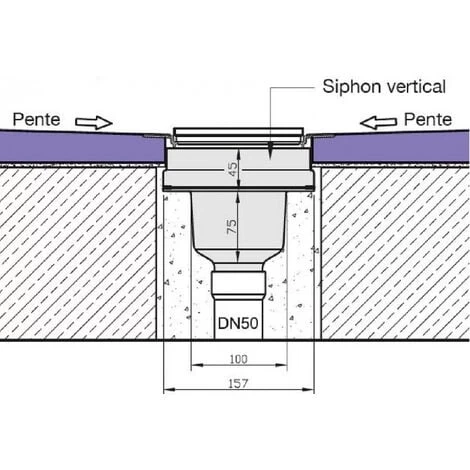

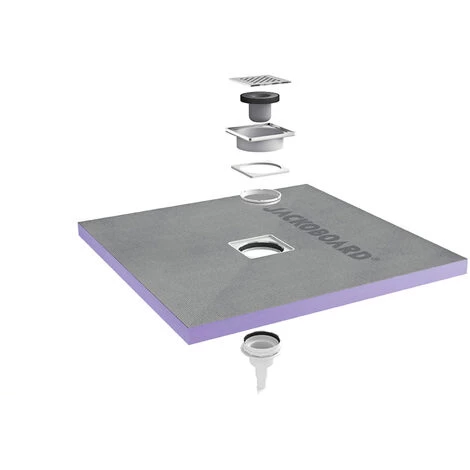

Vertical siphon kit and high-end design grid in solid brushed stainless steel offered (4512008)

• Grate support adjustable in height from 3 to 38 mm
• Ultra-flat drain with a minimum thickness of only 97 mm, including the tray
• High flow capacity of 0.9l/s
• 50 mm headroom
• DN 50
• Drainage connection made of glueable ABS plastic

Technical data of JACKOBOARD® Aqua :

• Extra flat shower tray made of extruded polystyrene hard foam with special coating on both sides
• Dimensions: 900 mm * 900 mm * 40 mm
• Water-repellent
• Special coating on both sides
• Ready to tile
• Preformed slope
• Thickness: 40 mm
• Compressive strength > 300 kPa
• Wheelchair accessible
• Excellent insulating properties λD = 0.035 W/( m-K)
• Flow rate > 0.9 l/s

Step-free and level: The shower for everyone.

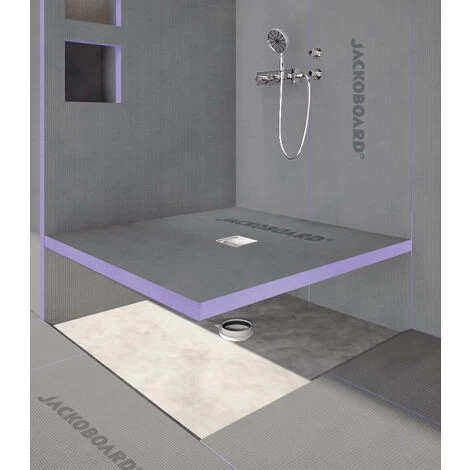

JACKOBOARD® Aqua shower trays allow you to create beautiful, individual bathrooms. They are available in all standard formats and a large number of customised sizes and shapes. They have a water-repellent extruded polystyrene foam core (XPS), a preformed slope and a special coating on both sides that allows them to be tiled directly without any additional preparation.


Advantages of JACKOBOARD® Aqua :

• Very low installation height
• Available in a wide range of sizes and cut-to-size shapes (e.g. square, rectangular, semicircular, centre, wall or corner)

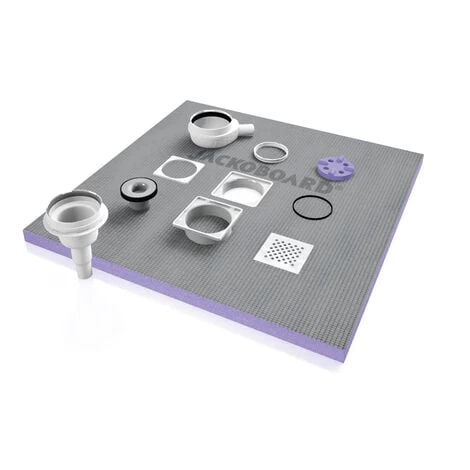

• Various drainage systems with a choice of positioning and solid stainless steel grate
• Sealed drain flange

Made in Germany

10-year guarantee

Video presentation : https://www.youtube.com/watch?v=QuToE1_YmW0
