- Length10.0 cm
- Weight7.0 kg
- Power600.0 W
- MaterialStainless steel
- ManoMano ReferenceME8597737
- Product codeHOMAC600D
Sanitary macerator pump with stainless-steel blades that effectively grinds up waste and pumps out wastewater with its 600-watt motor from multiple sanitary devices into the main plumbing line.
The versatile pump has three inlets, one main inlet for the toilet and one additional inlet that allow the user to connect to washbasins, sinks, bathtubs or washing machines.
- Pumps wastewater up to 10m (32.8 ft) vertically and 100m (328 ft) horizontally with a maximum flow rate of 240 L/min (63 gal/min) suitable for various plumbing needs
- Includes air ventilation with replaceable carbon filter that prevents and eliminates unwanted odours
The macerator has a security feature that signals a sound alarm when motor has been continuously running for 3 minutes. It has a service repair panel for easier access to view or repair the air switch with PCB. The device also includes a manual switch to test the device or to use as a temporary substitute when the air switch malfunctions. It also has a maximum operating temperature of 90°C (194 °F).
When installing the pump, kindly use this as a reference for the pump distance:
| Vertical (m) | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Horizontal (m) | 100 | 90 | 80 | 70 | 60 | 50 | 40 | 30 | 20 | 10 | 0 |
Specifications
| Power Consumption | 600 W |
|---|---|
| Max. Input Flow Rate | 240 L/min (64 gal/min) |
| Max. Water Temperature | 90 °C |
| Noise Level | 45 – 60 dBs |

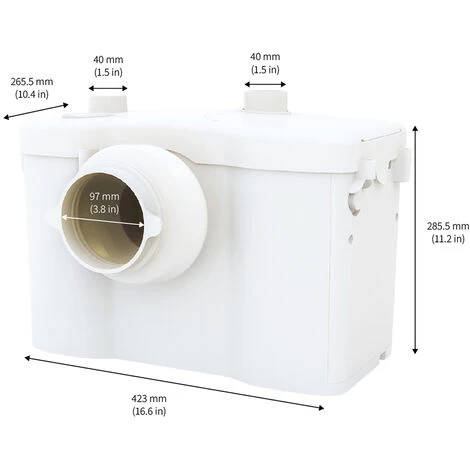

| Dimensions (LxWxH) | 423 x 265.5?x 285.5 mm (16 x 10 x 11 in) |
| Blade Material | Stainless Steel (304) |
| Inlet | 1x 100 mm, 1 x 40 mm, 1 x 40 mm (optional) |
| Outlet | 1 x 40 mm |
| Carbon Filter | Yes |
| Manual Switch | Yes |
| Horizontal Discharg | 100 m |
| Vertical Discharge | 10 m |
| Net weight | 7 kg (15 lbs) |
| Accessories | 1 x Macerator 1 x Non return Valve 40 mm 1 x Toilet Inlet Cover 1 x Side Inlet Cover 1 x Side Inlet Connector 1 x Jubilee Clip 90-110 mm 7 x Jubilee Clip 32-50 mm 2 x Screw 2 x Housing Feet |
| Warranty | 2 years |
| Certificate | GS TÜV and CE certificate |
