- Length413.0 mm
- Width180.0 mm
- Height278.0 mm
- Weight7.8 kg
- MaterialStainless steel
- Evacuation directionHorizontal
- FinishStainless steel
- ManoMano ReferenceME8455783
- Warranty2 years
- Product code46577

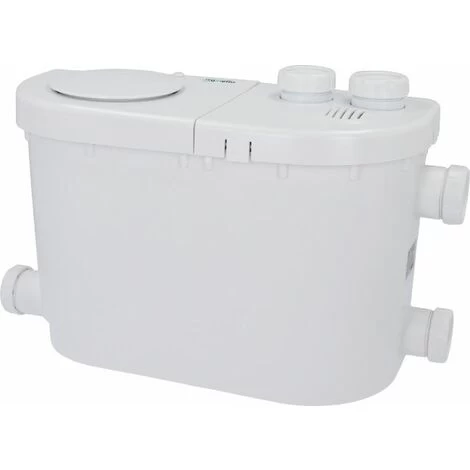

A lifting station is a simple way to pump waste water from an appliance where there is no immediate access to a soil pipe. You know that you’re in good hands with this lifting station as it is manufactured by Stuart Turner. However, in the very rare case that you do find something wrong with your LS5 you’re covered by a 2-year manufacturing guarantee against any factory defects, for that added peace of mind.
Removable Cassette System
|
Standard Plumbing Connections
|
Non-Return Valves On Horizontal Inlets
|
32 / 28 / 22mm Outlet With Non-Return Valve
|
Extremely High Resistance To Corrosive Water Output From Water Softeners
|
2 Year Guarantee
|
Quiet Operation
|
Quality Guaranteed
|
CE Marked
|
BS EN ISO 9001:2015 Approved
|
Features and benefits:
• Two top inlet connections suitable for dishwasher and washing machine
• Three side inlets with non return valves suitable for 32 mm (1¼ “) or 40 mm (1½ “) waste pipe connections (inlet adaptor included)
• The removable cassette system allows easy access to clean and maintenance
• The simple way to pump waste water from an appliance where there is no local access to a soil pipe
• Complies with BS EN 12050
• A 2-year guarantee against any factory defects Technical Information:
• 32 mm (1¼ “) diameter waste outlet
• Noise Level: 50 dB
• Maximum head: 7.7 metres
• Pumping distance: 7 metres (Vertical) 72 metres (horizontal)
• Maximum flow: 120 l/min

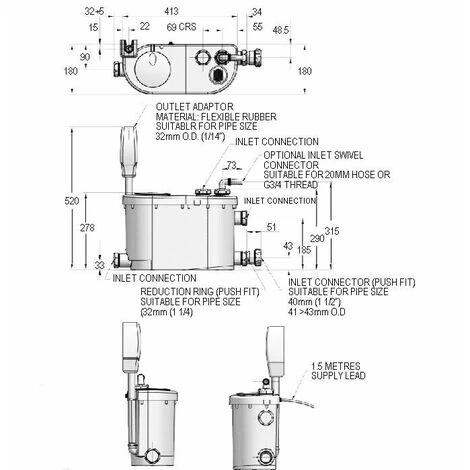

• Supplied pre-wired with 1.5 m supply cable Dimensions:
• Length: 413mm
• Width:180mm
• Height: 278mm
• Weight: 7.8Kg
| |
