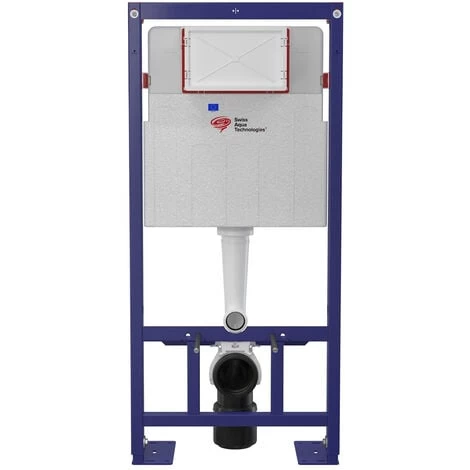

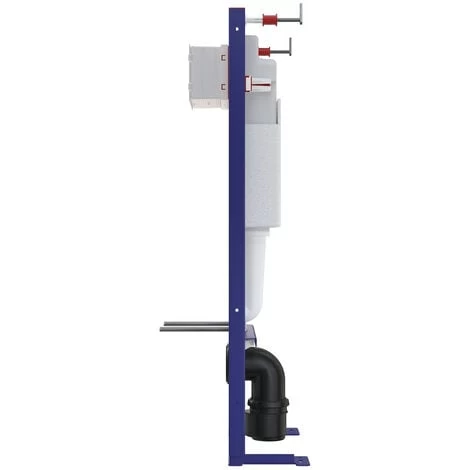

Swiss Aqua Technologies Self-supporting Frame For Wall Mounted Toilet (SATAMS)

Features of the Self-supporting frame for wall mounted toilet (SATAMS) :

• For mounting on load-bearing or non-load-bearing walls
• For floor thickness 0-200 mm
• For installation of wall-hung toilet bowls with a connection pitch of 180 mm or 230 mm
• Adjustable anchor feet and spring-loaded locking system with a range of 0-200 mm
• Visible marks for levelling and centre line
• Sliding rail support for the drain connector can be adjusted to eight positions between 0 and 93 mm.
• Angle valve with connection possibility to the Mepla pipe system
• For drywall, completely pre-assembled
• The installed module is covered with plasterboard and no additional fixing or anchoring elements are required.
• The polystyrene insulation construction prevents condensation from forming on the tank surface and dampens tank vibrations.
• Prepared for the connection of a bracket with a DG 1/2″ conversion for bidet seats and sprays
• Independently adjustable dual flush with hygienic reserve
• Water supply from the back/top
• The cistern is made in one piece, thus ensuring 100% watertightness.
• The service opening cover simplifies installation and prevents the ingress of moisture and dirt.
• Installation depth adjustable from 20-95 mm
• Installation depth 125 mm
• Frame material: powder-coated metal
• Metal feet
• Shut-off valve included
